10kg Graduation Electronic Lorry Weighbridge 3.4*14m Steel Q235 Material High Strength

Hebei Pinglei Weighing Apparatus Co., Ltd
Contact Now
    Buy cheap 10kg Graduation Electronic Lorry Weighbridge 3.4*14m Steel Q235 Material High Strength from wholesalers

    Buy cheap 10kg Graduation Electronic Lorry Weighbridge 3.4*14m Steel Q235 Material High Strength from wholesalers
    • Buy cheap 10kg Graduation Electronic Lorry Weighbridge 3.4*14m Steel Q235 Material High Strength from wholesalers

    10kg Graduation Electronic Lorry Weighbridge 3.4*14m Steel Q235 Material High Strength

    Ask Lasest Price
    Brand Name : Pinglei
    Model Number : SCS
    Certification : ISO9001
    Price : negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets Per Week
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

    10kg Graduation Electronic Lorry Weighbridge 3.4*14m Steel Q235 Material High Strength


    3.4*14m U Beam Electronic Lorry Weighbridge With Ramp 60 Ton

    Advantage

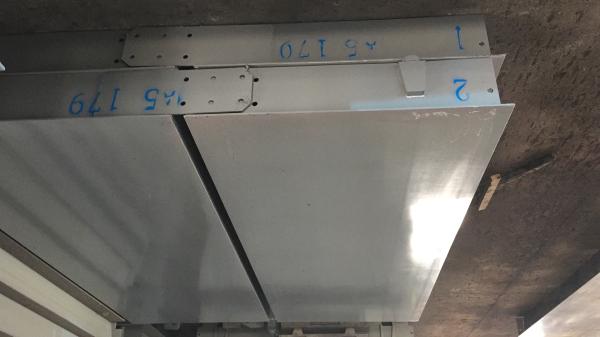

    1. Its longitudinal members compose of over 5 U-form beams made of Steel Q235, which provides overall strength and rigid support for scale platform and structure;

    2. outer cover is painted with marine paint--epoxy zinc rich primer and anticorrosive coat paint, which can prevent scale from acid, alkali and corrosion;

    3. signal sent by digital Load cell is at 4v stronger which can make sure a distant transmission and has a good ability of anti-jamming;

    4. you can choose terminal box and indicator in anti-explosion type to safeguard scale from danger

    5. pit foundation type is durable for long-term use; while pit less foundation type is convenient to install and uninstall, and easy to move from one place to another;

    6. Accuracy up to OIML III, tested by National Bureau of Quality and Technical Supervision of China;


    Parts and assembly


    The scale consists of three essential parts: weighing platform, load cell and indicator. Besides computer, printer and unattended system are also selective to be equipped which can realize distant transmission and effective management of weighing date. It is widely used in mining, metallurgy, construction, machine, chemical, iron and steel industries etc.


    Item Type

    Scs-10

    Scs-20

    Scs-30

    Scs-40

    Scs-50

    Scs-60

    Scs-80

    Scs-100

    Scs-120

    Scs-150

    Max Capability

    10

    20

    30

    40

    50

    60

    80

    100

    120

    150

    Graduation(Kg)

    5

    5

    5

    10

    10

    10

    20

    20

    20

    20



    Width×length

    Size(m)











    3×7

    Yes

    Yes

    Yes

    Yes







    3×10



    Yes

    Yes







    3×12
    3.2×12




    Yes

    Yes






    3×14
    3.2×14




    Yes

    Yes

    Yes

    Yes




    3×16
    3.2×16





    Yes

    Yes

    Yes

    Yes

    Yes

    Yes

    3×18
    3.2×18






    Yes

    Yes

    Yes

    Yes

    Yes

    3×20
    3.2×20







    Yes

    Yes

    Yes

    Yes

    Remarks


    1,the above items with Yes are commended; other size or capability of item from customers can be also supplied;
    2, different items with unequal number of U-shaped longitudinal members(beam). Generally, scale of 3m width with 5 pcs, 3.2m with 6pcs,3.4 with 7pcs.
