3*15m 120 Ton Electronic Lorry Weighbridge Truck Scale Price

weighing platform, high accuracy weighing load cell and weighing indicator. Printer, scoreboard and computer management system are optional so as to complete the requirements of data management and transmission on the higher level.

Main features of weighing platform:

1. use U-shape beam structure, scientific and reasonable, strong and durable;

2. undersurface uses high quality antirust paint so as to increase its service life;

3. modular, sealed cavity, anticorrosion, convenient installation

Standard part:

1. Scale body
2. ZEMIC load cells
3. Indicator
4. junction box
5. cable (50m)
6. foundation drawings
7. screws & tools. Etc

A. With a top cover on the platform for access to the load cells.
B. Composed of 4 or 6 U beams and C channel beams,robust and rigid.
C. Middle dissected,with bolts connection. Double shear beam load cell or compression load cell selectable.
D. Pit & pitless mounted alternatively,and pit mounted more often.
E. Easy assembly and installation Width available:3m,3.2m,3.4m.
Standard length available:6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,24m.
Max Capacity available:30t,40t,60t,80t,100t,120t,150t.
3 sets of 3x18m can be placed in one 40'high containerk.

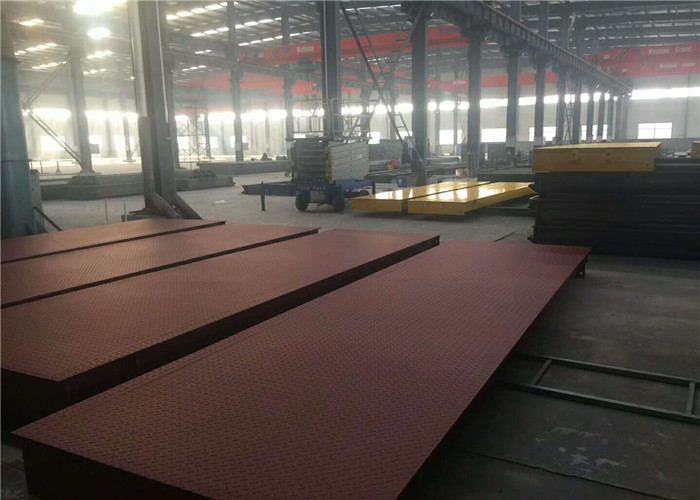

Pinglei is located in Shijiazhuang, Hebei Province, build in 2005. My factory is the largest weighbridge manufacture in North China. We have almost 100 employees in R&D, management, sales and production. We produce truck scales by our own design. Our annual sales reached 10 millions US dollars in 2008,and 80% of sales is from the oversea market.

Pinglei has got a certification of ISO 9001:2015.We concentrate all of our resources to provide the best prices to our customers with top-grade products. The design, manufacturing, inspection and test of our products meet customers demands and all related standards.

We have a strong R&D team who has rich experience in developing various scales, and constantly present new types of products according to the demands of oversea markets. We have various production and testing equipments which are necessary for producing products with high quality. Besides, we have many operators with rich experience, so each piece of our products could get the foreign customers hearty praise.

If you select Pinglei,it is just that you have chosen one advanced and reliable representative.

To choose Pinglei who is powerful and with abundant experience as your supplier, you will save more money and create more value.
