Digital Portable Axle Weighbridge Weigh Machine Weight Scale For
Truck

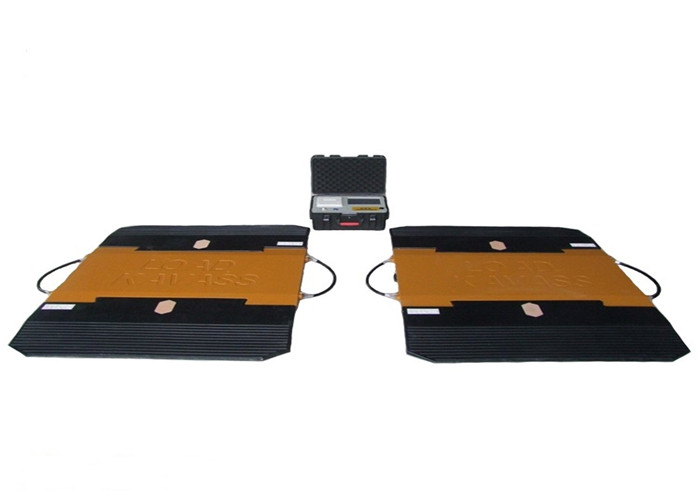

1 product configuration
a. 2 pieces weighing pad;
b. 1pc indicator;
c. standard accessories (Chargers, printer paper, ribbons and so
on)
2 specifications
1) dimensions:
a. weighing platform: 700x420x30mm (can be customized up to
900x500mm)
b. Indicator: 430x335x170mm
2) weighing range:
a. wheel weight: 0~20 tons
b. axle load: 0~40 tons
c. vehicle weight: 0~1000 tons
3) static accuracy: ± 1% FS; dynamic precision: ± 5% FS
4) recommended speed: 3-5 km/h
5) weight:
a. the weighing platform: 28Kg (single plate +aluminum box)
b. indicator: 8.5Kg;
6) operating temperature:-20-60℃, storage temperature:-30-80 ° c
7) relative humidity: <90%RH
8) waterproof and dust-proof grade: a. scale: IP66 b. indicator:
IP65
3 function
1) highways, traffic police and eight ministries working mode and
print mode.
2) calibration two scale separate, with 10 point correction,
greatly increasing the accuracy of product.
3) has a time and date display, train ticket entry, instrument and
two battery monitoring indicators, and so on.
4) vehicle speed display (unit: km/h).
5) floating zero technology and zero-tracking technology to
eliminate zero-point drift.
6) digital menu, clear and simple.
7) measurement of the axle up to 10.
8) indicator with micro printer, print time, date, vehicle number,
ticket number, axle weight, axle group weight, gross weight,
overweight and monitoring units, these date can be used as law
enforcement credentials.
9) using the standard RS-232 interface, connected with the
computer.
10) AC charger and car charger, built-in high capacity batteries,
it can detect hundreds of times if charge 1 time
| SPECIFICATIONS: |
| Rated output (mv/v) | 0.9
| Temperature effect on span (%FS/10) | 0.1 |
Combined Error (%FS)
| 0.2 | Temperature effect on zero (%FS/10) | 0.1 |
Non-linearity (%FS)
| 0.1,0.2 | Temperature. Compensated () | -10-50 |
Non-repeatability (%FS)
| 0.1 | Temperture, operating () | -40-80 |
Creep(%FS/min)
| 0.1 | Excitation, Voltage (V) | 9-15(DC) |
| Input Resistance (Ω) | 3120±40 | Max.Excitation(V) | 20(DC) |
| Output Resistance (Ω) | 2800±10 | Safe Overload (%FS) | 120 |
| Insulation Resistance (MΩ) | ≥5000(100VDC) | Uitimate Overload(%FS) | 150 |
| Zero Balance (%FS) | 400-100 | Protection Class | IP66 |
| Max.load for single point | 10t | Cable Spec (m) | 4-wire shield cable |
| Rated Capacity | 15t |
Connections:
Red input(+) Black input(-) Green output(+) White output(-) |
