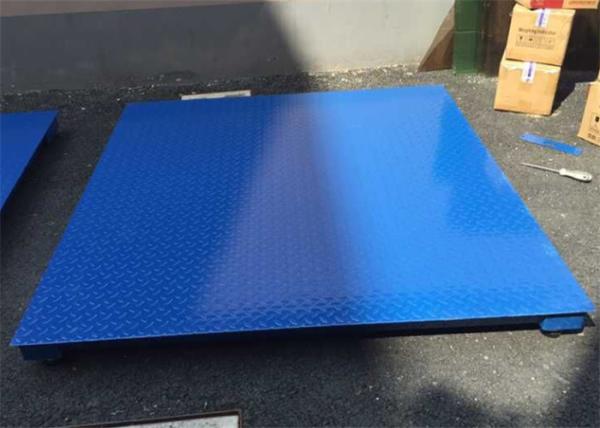

1.2*1.5m Industrial Floor Scale 3Ton 5mm Decorative plate

1. U-shaped steel welded structure, high strength design
2. Material: carbon steel or stainless steel, pattern steel or flat panel
3. Carbon steel scales: paint or galvanized
4. Stainless steel surface: polishing, wire drawing
5. Supported by the patented carrying activity, the requirements for the ground are low
6. Four high-precision shear beam sensors
Input signal range: -16mV-18mV;
Sensor for bridge power supply: DC3V;
Number of connected sensors: 1-4 350Ω can be connected;
Sensor connection: 4-wire system;
Test division number: 3000;
Display mode: 6 LED digital tubes, 6 status indicators;
Display range: -99990-999900;
AC power supply: AC85-265V; 50-60Hz;
DC power supply: Built-in battery DC4V/4.5Ah.
Accuracy Level OIML Level III

Remarks special size, can be customized according to customer needs
Single-layer electronic floor scale product features:
1. Zero, peel, accumulate
2. Counting, counting, check weighing, sorting
3. Print, communication interface RS232/485 (optional)
4. 4~20mA analog output (optional)
5. Relay output (optional)
Single-layer electronic floor scale specifications
Weighing: 1T, 2T, 3T, 5T, 10T
Sensitivity: 0.2KG, 0.5kg, 1kg, 1kg, 2kg
Table size (m*m): 0.8*0.8,1 *1,1*1.2,1.2*1.2,1.2*1.5,1.5*1.5,1.5*2,2*2,2*3,2*4

Pinglei is located in Shijiazhuang, Hebei Province, build in 2005. My factory is the largest weighbridge manufacture in North China. We have almost 100 employees in R&D, management, sales and production. We produce truck scales by our own design. Our annual sales reached 10 millions US dollars in 2008,and 80% of sales is from the oversea market.

Pinglei has got a certification of ISO 9001:2015.We concentrate all of our resources to provide the best prices to our customers with top-grade products. The design, manufacturing, inspection and test of our products meet customers demands and all related standards.

We have a strong R&D team who has rich experience in developing various scales, and constantly present new types of products according to the demands of oversea markets. We have various production and testing equipments which are necessary for producing products with high quality. Besides, we have many operators with rich experience, so each piece of our products could get the foreign customers hearty praise.

If you select Pinglei,it is just that you have chosen one advanced and reliable representative.

To choose Pinglei who is powerful and with abundant experience as your supplier, you will save more money and create more value.
