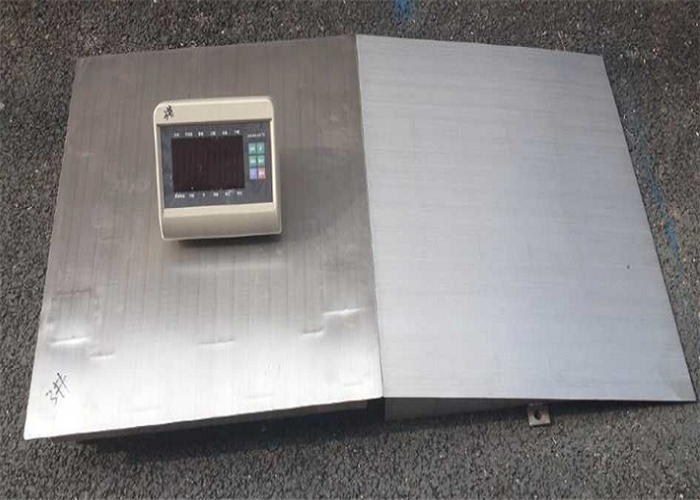

1m*1m Stainless Steel Industrial Floor Scale U Type Beam With Ramp
Full 304 stainless steel plate goods stainless steel plate scale
platform
Four high-precision sensors, a stainless steel junction box, a 5m
long data cable
A meter stand
Listed company Yaohua plastic shell A12E weight gauge or full 304
stainless steel shell weight gauge
Four stainless steel weighing feet
Stainless steel platform scale Features:
AC/DC dual-purpose instrument, not affected by AC power failure
Zero, peel, clear, skin, and other functions
Keyboard settings and corrections
Gradient value automatic switching: higher display accuracy
Self-diagnosis function: multiple error messages and alarms
LED, LCD two display modes are optional
Stainless steel electronic scales Product parameters:
1. The scale body adopts a steel plate thickness of 5mm, -5.1mm
strength, high hardness, wear resistance, impact resistance, long
service life (surface polished and brushed)
2, using 4 high precision alloy steel waterproof sensor (waterproof
grade IP68)
3, using stainless steel waterproof anti-corrosion weighing
display, single window red lamp display, easy to use in a variety
of different operating environments clear and easy to read with
weight accumulation, peeling, automatic zero tracking function,
built-in battery, AC and DC use. Full-featured, easy to operate
4. Adopt one HQ-4 hole special waterproof junction box, adopt
high-precision potentiometer and stainless steel shell, equipped
with TVS tube (18V) anti-surge impact (parallel type) waterproof
performance
5, range: 0.5T, 1T, 2T, 3T, 5T, 10T
6, allowable error: 0.1kg-------2kg
7, table size: 0.8*0.8m-------2*3m
| Max.cap. | Division | Platform Size |
| 1T, 2T | 0.5KG, 1.0KG | 0.8*0.8M |
| 1T, 2T | 0.5KG, 1.0KG | 0.8*1.0M |
| 1T, 2T, 3T | 0.5KG, 1.0KG, 1.0KG | 1.0*1.0M |
| 1T, 2T, 3T | 0.5KG, 1.0KG, 1.0KG | 1.0*1.2M |
| 1T, 2T, 3T, 5T | 0.5KG, 1.0KG, 1.0KG, 2.0KG | 1.2*1.2M |
| 1T, 2T, 3T, 5T | 0.5KG, 1.0KG, 1.0KG, 2.0KG | 1.2*1.5M |
| 1T, 2T, 3T, 5T | 0.5KG, 1.0KG, 1.0KG, 2.0KG | 1.5*1.5M |
