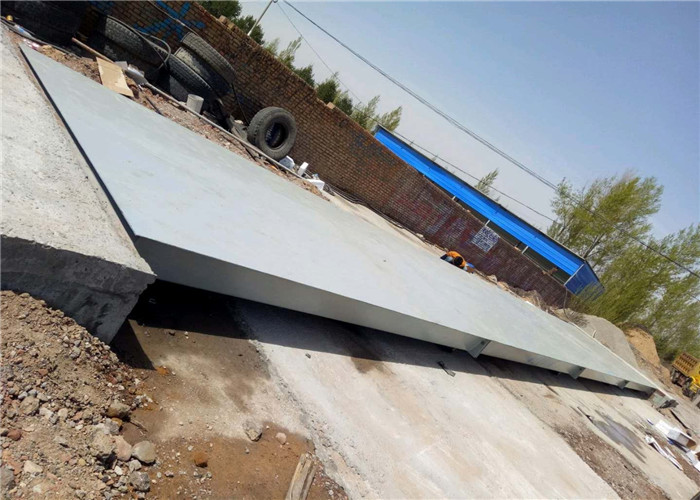

Shallow Pit Weigh bridge Manufacturer Landfill Weighbridge For 80 Tons

The bottom of truck weighing schematic

Driveway with steel closed than open structure strength, which is compressive strength, impact, bending, better fatigue resistance, long life!

Compared with the U-beam scale body: Beam thickness of 6mm, scale body without bottom seal

Technical Specifications:

-Accuracy class: OIML(111)

-Weighing scope:10-150(t)

-Truck scale length:5-24m

-Truck scale width:3-3.4m

-Interval:≥3000

-Working enviroment:

-Indicator surrounding: temperature:-10+40°C

-weighting table:-30+65°C

-Relative humidity: below 95%

-Power supply: 220V(AC) 50HZ

-Weighing capacity: 30Ton

Standard accessory part include:

1.1pcs digital weighing indicator.

2.8pcs high accuracy digital load cell

3.1pcs panasonic printer

4.1pcs waterproof junction boxes.

5.1pcs keda dedicated shielded cable.

6.1 whole set Bolts-screws,limit screw,loading cell screw,cover plate screw,installation tools.

Pinglei is located in Shijiazhuang, Hebei Province, build in 2005. My factory is the largest weighbridge manufacture in North China. We have almost 100 employees in R&D, management, sales and production. We produce truck scales by our own design. Our annual sales reached 10 millions US dollars in 2008,and 80% of sales is from the oversea market.

Pinglei has got a certification of ISO 9001:2015.We concentrate all of our resources to provide the best prices to our customers with top-grade products. The design, manufacturing, inspection and test of our products meet customers demands and all related standards.

We have a strong R&D team who has rich experience in developing various scales, and constantly present new types of products according to the demands of oversea markets. We have various production and testing equipments which are necessary for producing products with high quality. Besides, we have many operators with rich experience, so each piece of our products could get the foreign customers hearty praise.

If you select Pinglei,it is just that you have chosen one advanced and reliable representative.

To choose Pinglei who is powerful and with abundant experience as your supplier, you will save more money and create more value.
