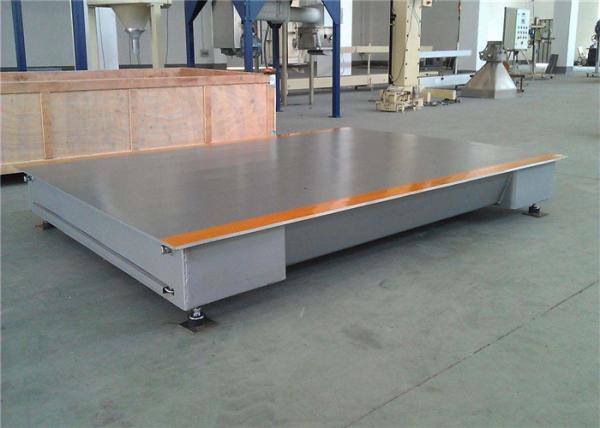

50 Ton Pit Type Weighbridge Truck Scale Sensor Load Cells 220VAC / 50Hz Power

50 Ton U Shape Electronic Pit Type Weighbridge Truck Scale Sensor Load Cells

1. Precision: OIML III
2. Capacity range: 30t~200t
3. Length of weighing platform: 7~24m
4. Operation temperature: Indicator - 10°C~+40°C
5. Weighing platform and Load Cell -35°C~+70°C
6. Safe overload: 150%
7. Relative humidity (RH)<95%
8. Power: 220VAC/50HZ

9. Division: 5kg/ 10kg/ 20kg/ 50kg

10. Width: 3m/ 3.2m/ 3.4m/ 3.6m

11. Length: 5m/ 6m/ 7m/8m/9m/ 10m/ 12m/15m/16m/18m/20m/21m/22m/24m

Features :

1. Digital display of gross weight, net weight and tare weight

2. Auto zero tracking, auto peeling and auto tare clearing
3. Storage of vehicle No.,tare weight, article No., itemize accumulation, total accumulation
4. Data transmission, querying and printing
5. Chinese, English and Numeric input
6. Stainless steel load cell as standard which performs well in anti rust and waterproof
7. Interconnected through PC and printer
8. U-type beam and the panel are continuously welded into shape to isolate the inner air from outer air, eliminate internal corrosion, improve antirust performance and increase the service life

Platform W x L (m)		Module Qty	Description
Platform W x L (m)		Module Qty	SCS-30	SCS-50	SCS-60	SCS-80	SCS-100	SCS-120	SCS-150	SCS-200
3X7	3.4X7	1	V	V	V
3X10	3.4X10	2	V	V	V
3X12	3.4X12	2	V	V	V	V	V	V
3X15	3.4X15	3		V	V	V	V	V
3X16	3.4X16	3		V	V	V	V	V	V
3X18	3.4X18	3		V	V	V	V	V	V	V
3X20	3.4X20	4				V	V	V	V	V
3X21	3.4X21	4				V	V	V	V	V
3X22	3.4X22	4				V	V	V	V	V
3X24	3.4X24	4				V	V	V	V	V
Max capacity(t)			30	50	60	80	100	120	150	200
Division(kg)			10	20	20	20	50	50	50	50
Load cell capacity(t)			20	25	25	40/45	40/45	45/60	60	90
Precision			OIML III
Working temperature			Indicator			-10℃~ +40℃
Working temperature			Load cell			-30℃~ +65℃
Humidity relative			≤95% (without dew)
Working power			Voltage 220VAC(-15%~+10%)/50±1Hz
