    Simple Structure Load Scales For Trucks , 80 Ton Weighbridge U Steel Scale Body

    Ask Lasest Price
    Brand Name : Pinglei
    Model Number : SCS
    Certification : ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets Per Week
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

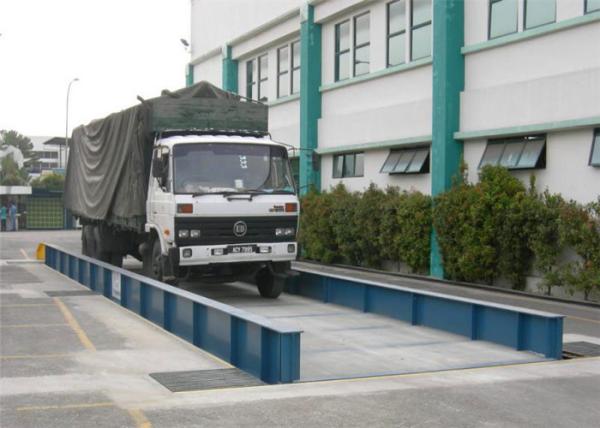

    Simple Structure Load Scales For Trucks , 80 Ton Weighbridge U Steel Scale Body


    80t Digital Truck Scales Weighbridge Digital Weighing Scale


    Weighbridge body structure Introduction:


    The most advanced international U-beam structure, the national standard panel, 6-7 U-beam, beam thickness 6-8mm, panel with automatic submerged arc welding, U beam beam after the use of CO2 protection welding, automatic continuous welding. The surface is sprayed with acrylic polyurethane topcoat, anti-corrosion and anti-rust, the paint does not fall off for 5 years.


    Monitor Introduction:


    The display is suitable for electronic floor scale, electronic truck scale, static rail scale and other static weighing system with 1 ~ 16 digital sensors


    Sensor Introduction:


    Sensor is a device that converts a quality signal into a measurable electrical signal output.The sensor is characterized by good accuracy, good stability, good consistency, interchangeability, easy installation and maintenance.


    U-Shaped Scale structure with a new concept of bridge design, with reasonable structure, stable quality, easy exchange and many other advantages. u steel scale body. According to the principle of bridge structure, with U-shaped beam at the bottom of the support, there is no closure of the floor, there is no mold partition.


    Advantages:


    1) We use the bridge design technology on the platform
    2) Simple structure, automated processing by machine
    3) Uniform force, deformation is small
    4) Beautiful appearance
    5) Product configuration flexibility, good interchangeability
    6) Mass production, product quality and stability
    7) Selection of standardized, easy to bulk purchase


    Model

    SCS-5t

    SCS-10t

    SCS-15t

    SCS-20t

    SCS-30t

    SCS-50t

    SCS-60t

    SCS-80t

    SCS-100t

    SCS-120t

    SCS-150t

    Capacity(t)

    5

    10

    15

    20

    30

    50

    60

    80

    100

    120

    150

    Division(kg)

    2

    5

    5

    5

    10

    20

    20

    20

    50

    50

    50

    platform size

    recommend standard

    2*5










    2.2*5 2.5*5









    2.2*6 2.5*6









    2.5*7 3*7









    3*9








    3*10








    3*12







    3*14







    3*15






    3*16 3.2*16






    3*18/3.2/3.4*18






    3/3.2/3.4*20








    3/3.2/3.4*21








    3/3.2/3.4*22








    3.2/3.4*24








    3.4*26
